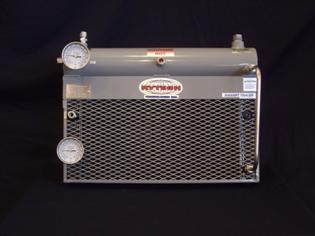

Radiant Tracer RT-1200
Hazardous Location Ratings
78797f Class 1 Division I and II Group D Hazardous Location
CSA T - Code - T2C Ambient 40° This System Equipped for High Altitude.
For indoor / Outdoor Use.
System Components
Radiant Tracer Model RT-1200 Series Heat Tracing System
Heat Tracer System , High Temperature Shut Down Controller , Temperature Gauges , All Connection Fittings
* Circulating Pump Sold Separately
|
Catalytic Adaptation Sizes |
12x24 - Catalytic Heater/CCI Thermal |
|
Heat Tracer Distance |
250 - 300 ft |
|
Temperature Control Range |
(50-104°F) 10 - 40°C |
| High Temperature Shut Down Setting |
176 °F / 80 °C |
|
Recommended Fluid |
Norkool Antifreeze |
| System Fluid Capacity |
5.5 Gals |
|
BTU Usage Heat Transfer |
2900 - 3400 BTU per/hr |
| Catalytic Heater BTU Input |
8000 BTU per/ hr |
|
Heat Tracing Requirement |
½" Stainless tubing |
