Radiant Tracer RT-1200B

box2

Hazardous Location Ratings
Class 1 Division I and II Group D Hazardous Location
CSA T - Code - T2C Ambient 40° This System Equipped for High Altitude.
For indoor / Outdoor Use.



System Components

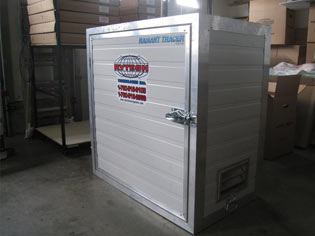

Complete Unit Box

  • 1 - Utility Box (4' X 4' X 2) with Secondary Containment.
  • 1 - 12 X 24 Catalytic Heater ( CSA, NAT Gas, 8000 BTU Rating )
  • 1 - Radiant Tracer Model RT-1200 Series Heat Tracing System
  • 1 - ½" Wilden / Sandpiper Diaphragm Circulating Pump
  • 1 - Temperature Controller
  • 1 - High Temperature Shutdown Controller All regulators, temperature gauges, fuel inlet gas valve, and all connection settings.



Heat Tracer Distance

250 - 300 ft

Temperature Control Range

(50-104°F) 10 - 40°C
High Temperature Shut Down Setting
176°F / 80 °C

Recommended Fluid

Norkool Antifreeze
Ucartherm Antifreeze
System Fluid Capacity
5.5 Gals

BTU Heat Transfer

2900 - 3400 BTU per/hr
Catalytic Heater BTU Input
8000 BTU per/hr

Heat Tracing Requirement

½" Stainless tubing
½" Polyethelene tubing (60 - 70 °C).
