Radiant Tracer RTX-1200B-GR
Hazardous Location Ratings
Class 1 Division I and II Group D Hazardous Location
CSA T - Code - T2C Ambient 40° This System Equipped for High Altitude.
For indoor / Outdoor Use.
Description
RTX-1200B-GR Series model is designed to heat trace production lines, fuel gas, flare, venting, water lines and many other application to a distance of 300'-500" ft of tracing. This system is retro-fitted with a unique pump exhaust gas recovery system the captures vented gas and introduced gas back into fuel gas supply system. This system eliminates or drastically reduces vented gas emissions.
System Components

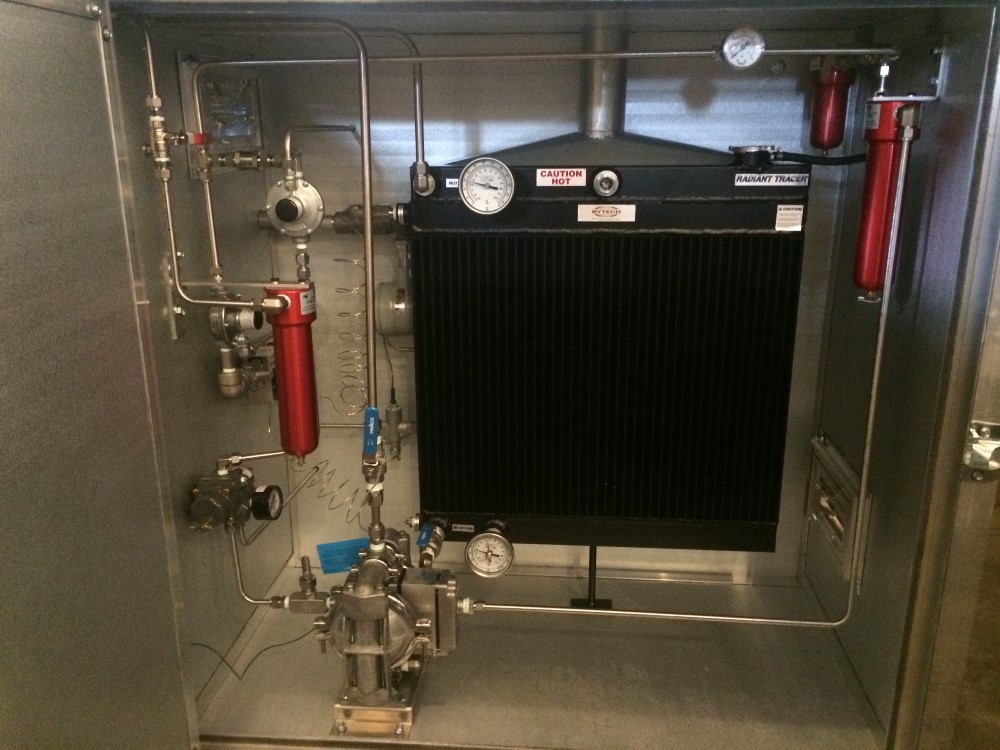

Complete Unit Box
- 1 - Utility Box (4' X 4' X 2) with Secondary Containment.
- 1 - 12 X 24 Catalytic Heater ( CSA, NAT Gas, 10,000 BTU Rating )
- 1 - Radiant Tracer Model RTX-1200 Series Heat Tracing System
- 1 - ½" Wilden / Sandpiper Diaphragm Circulating Pump
- 1 - Temperature Controller
- 1 - High Temperature Shutdown Controller All regulators, inlet gas filteration, temperature gauges, fuel inlet gas valve, and all connection settings.
Manufactured with CSA approved components.
Heat Tracer Distance |
300' to 500' ft |
Temperature Control Range |
(50-104°F) 10 - 40°C |
High Temperature Shutdown Setting |
176°F / 80°C |
Recommended Fluid |
Norkool Antifreeze |
System Fluid Capacity |
7.5 Gals |
BTU Input |
10,000 BTU per / hr |
Heat Tracing Requirement |
½" Stainless tubing |
Fuel Type Models Available | Natural Gas / LPG |
Fuel Usage | 0.020 e3m3/d @ 1 gallon/minute 35 psi supply pressure. |
