Radiant Tracer RTX-1200B
Hazardous Location Ratings
Class 1 Division I and II Group D Hazardous Location
CSA T - Code - T2C Ambient 40° This System Equipped for High Altitude.
For indoor / Outdoor Use.
Description
RTX-1200B Series model is designed to heat trace production, fuel gas, flare, venting, water lines and many other applications to a distance of 300' to 500' ft of tracing. Pump is designed to exhaust gas supply up to 40 PSI which can be utilized as another source of fuel gas supply or flare systems as purge gas with proper installation.

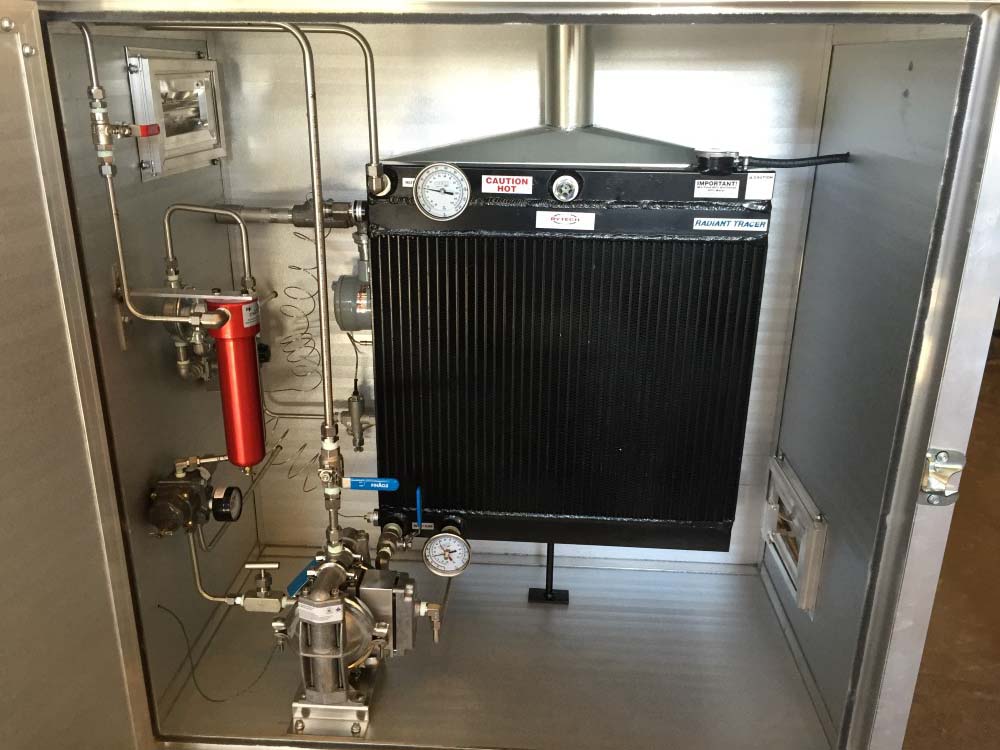

System Components
Complete Unit Box
- 1 - Utility Box (4' X 4' X 2) with Secondary Containment.
- 1 - 12 X 24 Catalytic Heater ( CSA, NAT Gas, 10,000 BTU Rating )
- 1 - Radiant Tracer Model RTX-1200 Series Heat Tracing System
- 1 - ½" Wilden / Sandpiper Diaphragm Circulating Pump
- 1 - Temperature Controller
- 1 - High-Temperature Shutdown Controller All regulators, inlet gas filtration, temperature gauges, fuel inlet gas valve, and all connection settings.
Manufactured with CSA approved components.
|
Heat Tracer Distance |
300 - 500 ft |
|
Temperature Control Range |
(50-104°F) 10 - 40°C |
| High Temperature Shut Down Setting |
176°F / 80 °C
|
|
Recommended Fluid |
Norkool Antifreeze |
| System Fluid Capacity |
5.5 Gals
|
| BTU Input |
10,000 BTU per/hr
|
|
Heat Tracing Requirement |
½" Stainless tubing |
|
Fuel Type Models Available |
Natural Gas / LPG |
| Fuel Usage | 0.035 e3m3/d at 2 gallons per minute 20 PSI supply pressure |
